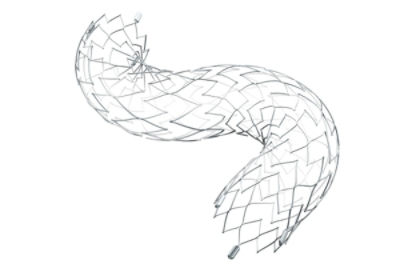

Neuroform Atlas® Stent System
Easy to use. Easy to deploy.

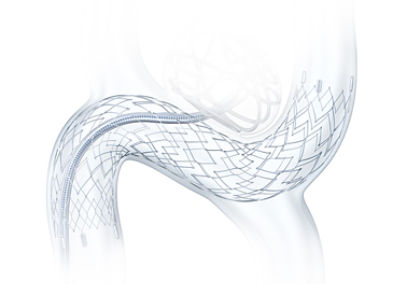

The Neuroform Atlas Stent System is designed to provide enhanced conformability, stability, and ease of use. The unique adaptive cell design provides the coil support and wall apposition needed to perform safe and effective stent-assisted coiling procedures.
Enhanced conformability
- Improved strut design for greater wall apposition
Ease of use
- Designed for delivery through an 0.0165in (Excelsior SL-10) or 0.017in (Excelsior XT-17) Microcatheter
- Predictable stent re-crossability
High deployment accuracy
- Low foreshortening
- Superior radial force compared to closed cell and braided stents
| Stent diameter | Stent length | Unconstrained stent diameter |
Recommended parent vessel diameter |
| 3.0mm | 15mm | 3.5mm | ≥2.0 and <3.0mm |
| 3.0mm | 21mm | 3.5mm | ≥2.0 and <3.0mm |
| 3.0mm | 24mm | 3.5mm | ≥2.0 and <3.0mm |
| 4.0mm | 15mm | 4.5mm | ≥3.0 and <4.0mm |
| 4.0mm | 21mm | 4.5mm | ≥3.0 and <4.0mm |
| 4.0mm | 24mm | 4.5mm | ≥3.0 and <4.0mm |
| 4.0mm | 30mm | 4.5mm | ≥3.0 and <4.0mm |
| 4.5mm | 15mm | 5.0mm | ≥4.0 and <4.5mm |
| 4.5mm | 21mm | 5.0mm | ≥4.0 and <4.5mm |
| 4.5mm | 30mm | 5.0mm | ≥4.0 and <4.5mm |
| Required microcatheter: Stryker 0.0165-0.017in (0.42-0.43mm). | |||
When outcomes matter most
The ATLAS IDE study has shown excellent results from the largest pivotal data with high complete occlusion and low complication rates.
Target Tetra Detachable Coil
For over 10 years, we have been continuously making Target Coils better. With Target Tetra, we’ve combined a stable, tetrahedral shape with incredible softness, making it an excellent option for treating small spaces from frame to finish. Target Tetra is our softest coil, yet has enhanced shape stability, so you’re never compromising one advantage for the other.
Learn more
Target Helical Detachable Coil
Target Helical Detachable Coils offer exceptional versatility, featuring a broad selection of sizes and varying degrees of softness to accommodate a wide range of clinical cases.
Learn more
Target 3D Detachable Coil
A complimentary complex coil option offers a stable foundation for consistent framing.
Learn more
Target 360 Detachable Coil
Target 360 Detachable Coils are the gold standard in complex coil shape technology. The 360 shape provides uniform distribution, concentric filling and neck coverage.
Learn more
